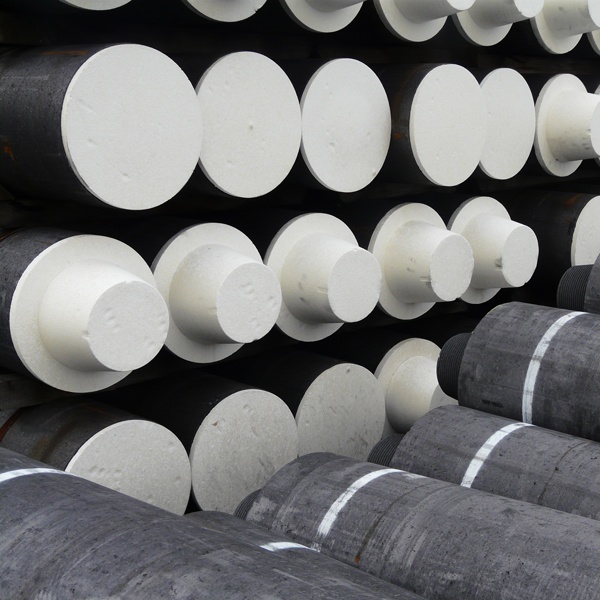

  • Graphite Electrode UHP500x1800 mm (20 x 72) with 4TPI nipples 269.88x457.2 mm
Graphite Electrode UHP500x1800 mm (20 x 72) with 4TPI nipples 269.88x457.2 mm

Graphite Electrode UHP500x1800 mm (20 x 72) with 4TPI nipples 269.88x457.2 mm

Graphite Electrode UHP500x1800 mm (20 x 72) with 4TPI nipples 269.88x457.2 mm
Shanchun® Carbon – China’s leading Graphite electrodes distributor. whatsapp +8613184770996 !

Graphite electrode is one of the most important metallurgical products, mainly used as conductive material in electric arc furnace metallurgy production. UHP graphite electrodes are mainly used for steelmaking high-power and ultra-high power electric furnaces.

Graphite electrode Dimension
Nominal Diameter: 500mm (min 505 mm, max 511 mm)
Nominal Length: 2400 mm (+100mm,-100mm)
Nipple:  269 T4L
Nipple Diameter: 269.88 mm
Nipple Length: 457.2 mm
● Typical weight of electrodes: 860kg
● Application: steel melt plant, ladle furnace
Current Carrying Capacity, (kA): 43-63

UHP500mm Graphite Electrode Physical and Chemical Parameters

UHP700mm

Electrodes

Bulk Density

Resistance

Flexual Strength

Young’s Modulue

Thermal

Expansion

Ash

Unit

g/cm³

μΩ.M

Mpa

Gpa

10-6/

%

Electrode

1.65-1.72

4.5-5.8

8.5-11.5

6.0-9.5

1.5

0.3

Nipple

1.73-1.81

3.5-5.0

12.4-20.0

12.0-18.0

1.4

0.3


Advantage
● Withstand large currents, high discharge rate
● Good dimension stability, not easy to deform
● Resistant to cracking & spalling
● High resistance to oxidation and thermal shock
● High mechanical strength, low electrical resistance
● High machining accuracy, good surface finishing
