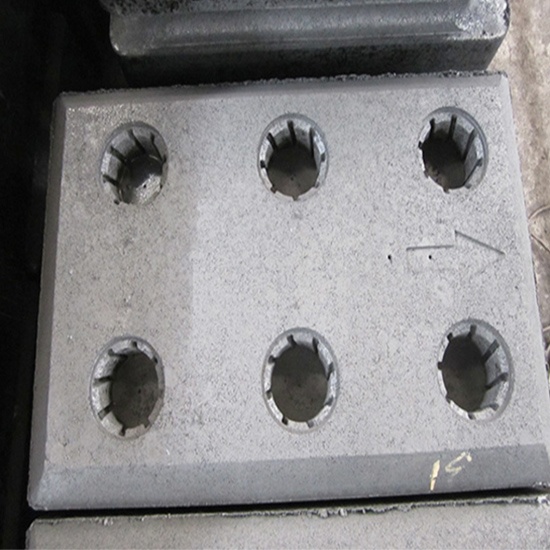

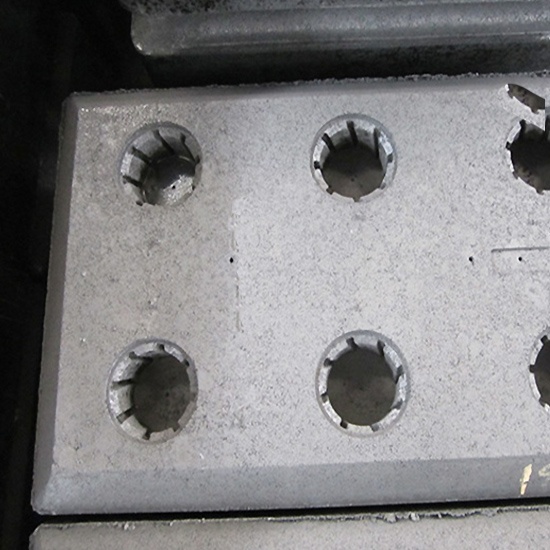

Pre-baked anode for aluminium electrolysis

Pre-baked carbon anodes are in a leading position of the aluminum industry. The main function of the pre-baked anode is to introduce electricity current into the electrolytic cell during the aluminum electrolysis process and participate in the electrochemical reaction.



Shanchun® Carbon mainly supply pre-baked anodes for electrolytic aluminum. The products have various sizes, among them, 1450mm and 1500mm pre-baked anode blocks are widely used in major aluminum smelters. One of our company's products, slotted anodes, is a new energy-saving and power-saving carbon product, which is popular with users at home and abroad.

Prebaked Carbon Anode is made from raw materials such as petroleum coke and coal tar pitch, and then processed by mixing, extruding, high-temperature baking and other processes. It is used as a conductive anode in the electrolytic cell of primary aluminum smelter aluminum. Baked anode has the characteristics of low ash content, low sulfur content, good plasticity and high strength.



Physical and Chemical Specifications

Mainly 1450*660*540, and can also be processed according to customer drawings.

Item

Ash

Resistivity

Compression strength

Bulk Density

Real Density



%

Ω·mm2/m

N/mm2

g/cm3

g/cm3

TY-1

0.5

55

29

1.5

2

TY-2

1.2

63

29

1.5

2




Bulk Density

Resistivity

Compression strength

Bending strength

CTE

Thermal Conductivity Coefficient

Permeability

CO2 Reaction allowance

Air Reaction allowance

g/cm3

Ω·mm2/m

Mpa

Mpa

10-6/K

W/mK

Npm

% RDC

% RDC

1.53-1.58

52-63

40-48

5-12

3.5-4

3.0-4.5

0.5-1.5

84-92

70-85



Advantages

1. High antioxidant
2. High thermal shock resistance
    Coefficient of thermal expansion 4×10
    Thermal conductivity 3 W/mk
3. High current density
    The current density 0.8A/cm2
4. Low electrical resistance
    Electrical Resistivity : 55-56μΩm
