Products >> Graphite Products >> Graphite Block

  • Vibration Molding Graphite Block

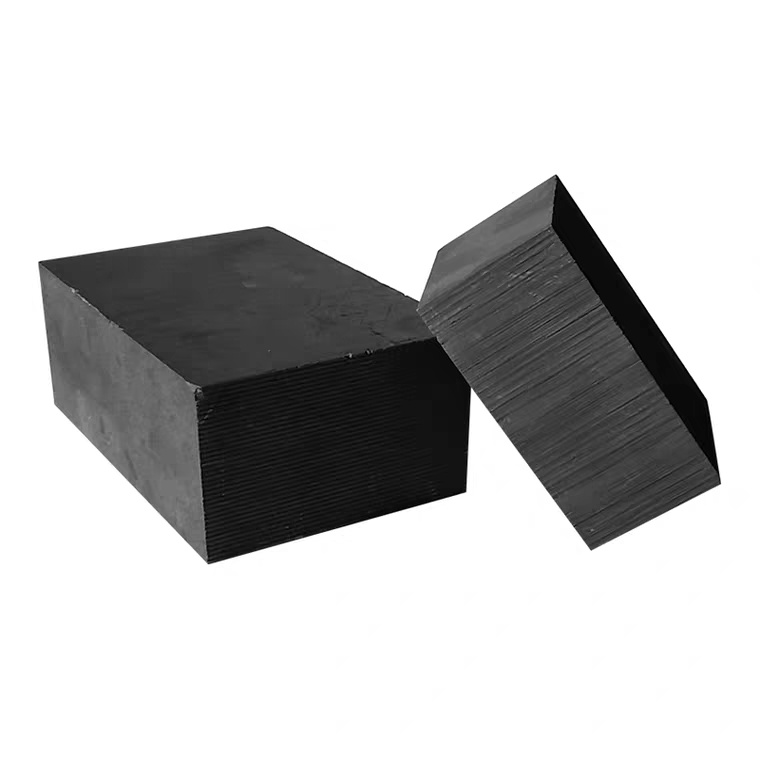

Vibration Molding Graphite Block

Vibration Molding Graphite Block

Vibration Molding Graphite Block
Shanchun® graphite block – Custom Graphite products specialistwhatsapp +8613184770996!

Shanchun® supply a range of grades and sizes of graphite and carbon in block form. Raw material are available in isotatic graphite, molded graphite and fine grain graphite and medium grain graphite.

Medium-grain graphite materials with high density, excellent thermal shock resistance, high anti-oxidation and corrosion performance, which are capable for most challenging environments.

Technical Specification of Graphite Material

Type

Bulk Density

(g/cm3)

Resistivity

μΩ.m

Thermal conductivity

W/(m)

Thermal expansion coefficient

(x10-6/)

Shore

Hardness

HSD

Flexural strength

Mpa

Compressive strength

Mpa

Porosity

%≤

Granularity

μm

Moled Graphite

1.8

8-11

125

5.46

45

43

75

17

13-15

1.85

8-10

142

4.75

48

46

90

13

13-15





Isostatic

Graphite

1.9

8-9

140

5.1

58

59

98

11

8-10

1.95

11-13

87

5.64

76

68

145

11

8-10

1.68

13

-

-

-

25

50

-

-

1.82

14.2

-

-

68

58

118

12

-

1.85

13.5

-

-

67

65

135

11

-

Coarse grain

1.6

9-12

-

-

≥25

≥13

≥22

-

0-2 0.8

Fine grain

1.72

8-11

-

-

≥30

≥17

≥30

-

0-2 0.8



There are three main molding methods for carbon graphite products, such as extrusion molding, vibration molding, isostatic molding. Vibration molding graphite has uniform structure, homogeneity, low ash content and high mechanical strength. With good electric heating performance and large size, it can be used for processing large-scale workpieces.


Size available (mm)

400*400*2100

500*400*1900

500*500*1900

650*400*1900

700*350*1900

740*400*2200

830*400*2100

810*410*2200

φ600 x 360

φ700 x 360

φ800 x 360

φ900 x 360

φ1000 x 360

φ1100 x 360

φ1200 x 360

φ1300 x 360

φ1400 x 360

φ1500 x 360




Advantages
Large dimensions, versatile for varied applications
Good physical and chemical performance
Strong thermal shock resistance ability
Higher density and strength compared with extruded graphite
High quality, Low cost & easy machining
High melting point
High temperature resistance
High anti-deformation ability

Application

Our medium grain vibration molded graphite products are widely used in the following industries:
Graphite Molds
Resistance Heating Elements
Heat Exchangers
Furnace Linings & Electrodes
Boats and Trays for Sintering
Other solar, foundry, chemicals, electronics, ferrous metals, high-temp. processing, ceramics
and refractory.,etc.
