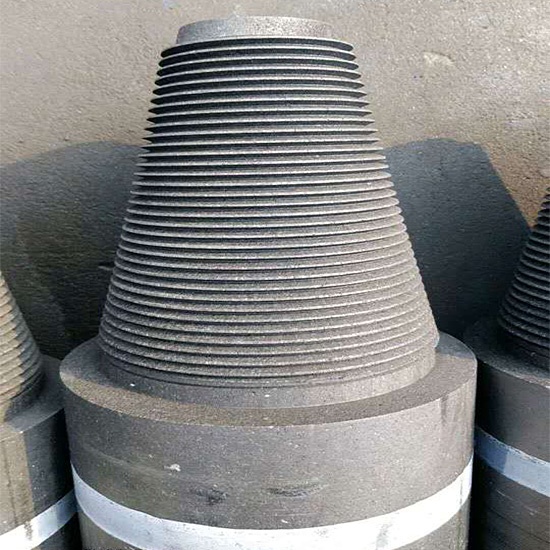

RP Graphite electrodes


Graphite electrode is one of the most important metallurgical products, mainly used as conductive material in electric arc furnace metallurgy production. RP graphite electrodes are mainly used for ordinary power electric furnaces such as steelmaking, silicon smelting, and yellow phosphorus smelting.

Advantage

● High current carrying capacity.
● Good resistance to breakage
● High resistance to oxidation and thermal shock
● High mechanical strength, low electrical resistance
● High machining accuracy, good surface finishing

Specification

Item

Unit

RP Nominal Diameter(mm)

RP Nominal Diameter(mm)

 YB/T4090 Industry Standard

 Enterprise Standard

75-300

350-450

500-800

75-300

350-450

500-800

LSR

Electrode

μΩ.M

10.0

10.5

10.5

8

8

8

Nipple

8.0

8.0

8.0

5.5

5.5

5.5

Flexural Strength

Electrode

Mpa

8.0

7.0

6.5

8.4

7.5

7

Nipple

15.0

15.0

15.0

16

16

16

Elastic Modulus

Electrode

Gpa

9.3

9.3

9.3

8

8

8

Nipple

14.0

14.0

14.0

12

12

12

Bulk Density

Electrode

g/cm³

1.53

1.53

1.5

1.6

1.6

1.6

Nipple

1.70

1.70

1.7

1.75

1.75

1.75

CTE

Electrode

10-6/

2.9

2.9

2.9

2.8

2.8

2.8

Nipple

2.8

2.8

2.8

2.7

2.7

2.7

Ash

%

0.5

0.5

0.5

0.2

0.2

0.2



Allowed Current Load

Nominal Dia

Nominal Diamm)

  Allowable current (A)

 Current density(A/cm3)

in

mm

AC

AC

3

75

1000-1400

22-31

4

100

1500-2400

19-30

6

150

3000-4500

16-25

8

200

5000-6900

15-21

10

250

7000-10000

14-20

12

300

10000-13000

14-18

14

350

13500-18000

14-18

16

400

18000-23500

14-18

18

450

22000-27000

13-17

20

500

25000-32000

13-16

22

550

28000-34000

12-14

24

600

30000-36000

11-13

26

650

32000-39000

10-12

28

700

34000-42000

9-11



Package

The graphite electrode is packed in wooden crates, and the nipples are packed in wooden cases or pre-set in the electrodes. Electrodes would be covered with polythene sheet to protect the same from dust and moisture, and fasten with steel strips, which is good looking and firm. Proper and safe seaworthy packing, easy for forklift handling. Necessary measures would be provided to avoid possible damages to nipple threads-such as protective foam and rubber caps.



Nominal Diameter

Pallet

Electrode Packing

Electrode Preset Nipple Packing

Appr N.W.

Dimension

Appr N.W.

Dimension

mm

inch

pcs

kg

mm

kg

mm

200X1600

8X63

9

750

1700X1070X480

770

1800X1070X480

200X1700

8X67

9

800

1800X1070X480

820

1900X1070X480

250X1700

10X67

3

425

1800X820X350

438

1910X820X350

250X1800

10X71

3

450

1900X820X350

465

2010X820X350

300X1800

12X71

3

630

1900X970X400

650

2100X970X400

350X1800

14X71

3

860

1900X1120X450

885

2100X1120X450

400X1800

16X71

3

1120

1900X1270X500

1165

2100X1280X500

400X2100

16X83

3

1300

2200x1270x500

1345

2400X1280X500

450X1800

18X71

2

950

1900x970x550

990

2100X970X550

450X2100

18X83

2

1100

2200x970x550

1140

2400X970X550

500X1800

20X71

2

1200

1900X1070X600

1255

2150X1070X600

500X2100

20X83

2

1400

2200X1070X600

1455

2450X1070X600

550X2100

22X83

2

1690

2200X1170X650

1760

2450X1170X650

550X2400

22X95

2

1940

2500X1170X650

2010

2750X1170X650

600X2100

24X83

2

2000

2200X1270X500

2080

2450X1270X700

600X2400

24X95

2

2300

2500X1270X700

2380

2750X1270X700
