UHP Graphite Electrode

UHP Graphite Electrode

UHP Graphite Electrodes
Shanchun® Carbon – China’s leading Graphite electrodes distributor. whatsapp +8615731101397 !

 UHP Graphite electrodes
Graphite electrode is one of the most important metallurgical products, mainly used as conductive material in electric arc furnace metallurgy production. UHP graphite electrodes are mainly used for steelmaking high-power and ultra-high power electric furnaces.
Electric Arc Furnace (EAF)
DC electric arc furnace
AC electric arc furnace
Submerged arc furnace
Ladle Furnace (LF)

Advantage
UHP graphite electrode is mainly used for ultra high power electric arc furnaces with the current density greater than 25 A/cm2.
● Withstand large currents, high discharge rate.
● Good dimension stability, not easy to deform.
● Resistant to cracking & spalling.
● High resistance to oxidation and thermal shock.
● High mechanical strength, low electrical resistance.
● High machining accuracy, good surface finishing.

Specification

Item

Unit

UHP  Nominal Diameter(mm)

UHP  Nominal Diameter(mm)

 YB/T4090 Industry Standard

Enterprise Standard

300-400

450-500

550-650

700-800

300-400

450-500

550-650

650-700

LSR≤

Electrode

μΩ.M

6.2

6.3

6

5.8

5.0-6.0

5.0-6.0

4.8-5.5

4.8-5.5

Nipple

5.3

5.3

4.5

4.3

3.8-4.5

3.8-4.5

3.5-4.1

3.5-4.1

Flexural Strength ≥

Electrode

Mpa

10.5

10.5

10.0

10.0

11.0-13.0

11.0-13.0

10.0-13.0

10.0-13.0

Nipple

20.0

20.0

22.0

23.0

20.0-25.0

20.0-25.0

24.0-30.0

24.0-30.0

Elastic Modulus ≤

Electrode

Gpa

14.0

14.0

14.0

14.0

8.0-12.0

8.0-12.0

7.0-10.0

7.0-10.0

Nipple

20.0

20.0

22.0

22.0

12.0-16.0

12.0-16.0

16.0-21.0

16.0-21.0

Bulk Density ≥

Electrode

g/cm³

1.67

1.66

1.66

1.68

1.68-1.73

1.68-1.73

1.69-1.73

1.69-1.73

Nipple

1.74

1.75

1.78

1.78

1.76-1.82

1.76-1.82

1.79-1.84

1.79-1.84

CTE ≤

Electrode

10-6/

1.5

1.5

1.5

1.5

1.3-1.5

1.3-1.5

1.3-1.5

1.3-1.5

Nipple

1.4

1.4

1.3

1.3

1.0-1.4

1.0-1.4

1.0-1.3

1.0-1.3

Ash ≤

%

0.5

0.5

0.5

0.5

0.2

0.2

0.2

0.2



Allowed Current Load

YB/T4090 Industry Standard

Enterprise Standard

Enterprise Standard

EAF

LF

Nominal Dia

Nominal Dia

Cross Sectional Area

Permissible Current Load

Current Density

Permissible Current Load

Current

Density

Permissible Current Load

Current

Density

in

mm

cm2

A

A/cm2

A

A/cm2

A

A/cm2

14

350

937

20000-30000

20-30

21000-32000

22-32

23000-34000

24-35

16

400

1275

25000-40000

19-30

26000-42000

20-33

28000-46000

22-36

18

450

1622

32000-45000

19-27

33000-49000

20-30

36800-52000

23-32

20

500

2000

38000-55000

18-27

40000-60000

20-30

43000-63000

22-32

22

550

2427

45000-65000

18-27

45000-68000

18-28

45000-69000

18-28

24

600

2892

50000-75000

18-26

52000-81000

18-28

-

-

26

650

3317

60000-85000

18-25

69000-89000

20-26

-

-

28

700

3935

70000-120000

18-30

70000-100000

18-27

-

-



UHP Graphite Graphite Electrode Weight

UHP Graphite Electrodes Reference Weight

Nominal Dia

Nominal Dia

Length

T3N

T3L

T4N

T4L

in

mm

mm

kg

kg

kg

kg

14

350

1800

294

-

297

294

14

350

2100

342

-

347

342

16

400

1800

383

382

388

386

16

400

2100

447

446

453

450

18

450

1800

477

476

486

483

18

450

2100

561

560

570

567

18

450

2400

645

644

654

651

20

500

1800

587

-

595

590

20

500

2100

691

-

699

694

20

500

2400

795

-

803

798

22

550

2100

-

-

-

835

22

550

2400

-

-

-

959

22

550

2700

-

-

-

1085

24

600

2400

-

-

1152

1144

24

600

2700

-

-

1301

1293

26

650

2400

-

-

-

1342

28

700

2400

-

-

-

1540

28

700

2700

-

-

-

1743



Packaging

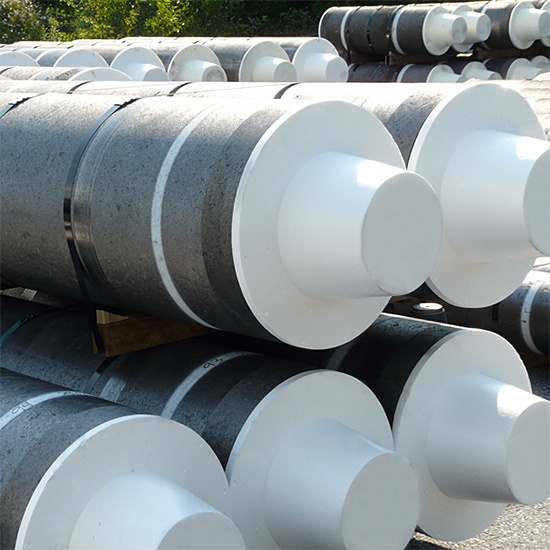

The graphite electrode is packed in wooden crates, and the nipples are packed in wooden cases or pre-set in the electrodes. Electrodes would be covered with polythene sheet to protect the same from dust and moisture, and fasten with steel strips, which is good looking and firm. Proper and safe seaworthy packing, easy for forklift handling. Necessary measures would be provided to avoid possible damages to nipple threads-such as protective foam and rubber caps.

Nominal Diameter

Pallet

Electrode Packing

Electrode Preset Nipple Packing

Appr N.W.

Dimension

Appr N.W.

Dimension

mm

inch

pcs

kg

mm

kg

mm

200X1600

8X63

9

750

1700X1070X480

770

1800X1070X480

200X1700

8X67

9

800

1800X1070X480

820

1900X1070X480

250X1700

10X67

3

425

1800X820X350

438

1910X820X350

250X1800

10X71

3

450

1900X820X350

465

2010X820X350

300X1800

12X71

3

630

1900X970X400

650

2100X970X400

350X1800

14X71

3

860

1900X1120X450

885

2100X1120X450

400X1800

16X71

3

1120

1900X1270X500

1165

2100X1280X500

400X2100

16X83

3

1300

2200x1270x500

1345

2400X1280X500

450X1800

18X71

2

950

1900x970x550

990

2100X970X550

450X2100

18X83

2

1100

2200x970x550

1140

2400X970X550

500X1800

20X71

2

1200

1900X1070X600

1255

2150X1070X600

500X2100

20X83

2

1400

2200X1070X600

1455

2450X1070X600

550X2100

22X83

2

1690

2200X1170X650

1760

2450X1170X650

550X2400

22X95

2

1940

2500X1170X650

2010

2750X1170X650

600X2100

24X83

2

2000

2200X1270X500

2080

2450X1270X700

600X2400

24X95

2

2300

2500X1270X700

2380

2750X1270X700



Application
