SiC Graphite Crucible for Melting Gold,Silver,Brass,Aluminium

Online Inquiry

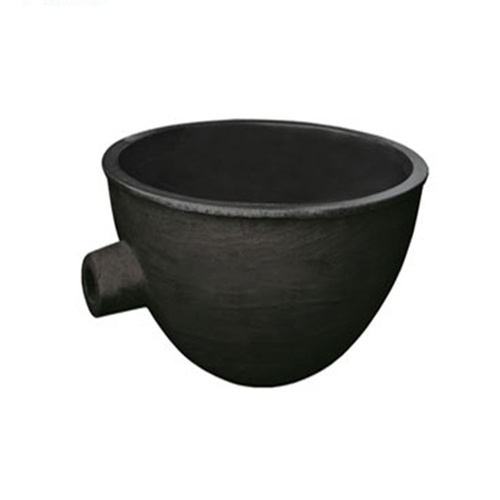

Silicon Carbide Graphite Crucible
Shanchun® SiC graphite crucible – Graphite products supplier，whatsapp +8613184770996!

What are SiC Graphite Crucibles?

Silicon Carbide Graphite Crucibles (SiC Crucibles) are premium quality crucibles being used at high temperatures which are suitable for metal melting, such as gold, silver, copper, brass, aluminum and refining other precious metals, base metals.

Advantages

● SiC graphite material is more durable than clay graphite and can withstand temperatures up to 1800℃(3272°F), higher than clay graphite crucibles
● Durable foundry SiC graphite crucible is 3-8 times longer life than clay crucible.
● High-temperature resistant, suitable for high temperature metal melting，such as gold, silver, copper, brass, aluminum and more.
● Fit for all the furnaces such as Coke-Oven, Fuel Burner, Electric Furnace,etc

Technical Specification

Standard Value		Typic Value
Refractoriness≥	1650℃	Refractoriness≥	1665℃
Apparent Porosity	10~14%	Apparent Porosity	10~14%
Bulk Density≥	1.9~2.1g/cm³	Bulk Density≥	1.9~2.1g/cm³
C≥	30~45%	C≥	30~45%
SiC≥	45%	SiC≥	48%

Dimensions

Unit：mm

Item	Top OD	Top ID	Height	Bottom OD
80#	295	250	365	170
100#	340	280	365	200
120#	340	285	390	170
150#	370	310	452	150
200#	400	345	510	190
250#	445	380	565	220
300-1#	460	390	595	240
300-2#	530	470	530	340
350#	480	410	633	260
370#	530	470	570	340
400#	520	455	665	250
450#	520	460	765	282
463#	590	522	600	340
500#	535	465	725	280
505#	540	465	780	290
530#	590	525	630	340
593#	620	545	610	360
600-1#	560	470	810	410
600-2#	590	527	650	340
650#	620	550	630	360
790#	620	555	690	360
800-1#	630	550	720	290
800-2#	650	570	650	330
802#	620	558	710	360
910#	710	610	600	440
950#	710	612	660	450
1000-1#	638	570	790	350
1000-2#	616	538	820	420
1000-3#	710	612	690	450
1050#	715	615	730	450
1200#	715	618	750	450
1300-1#	650	570	1000	475
1300-2#	720	620	800	450
1400#	720	627	890	450
1550#	780	680	750	400
1800#	780	682	900	400
2100#	855	775	835	350
2250#	875	785	880	350
2600#	900	790	1150	360
5000#	1040	920	1320	550
DZ1000	855	773	540	300
DZ1550	775	680	750	450
DZ1800	780	680	900	300
DZ2300	880	775	1000
DZ2700	880	780	1170	330
DL100	245	180	350
DL500-1	430	350	770	380
DL500-2	480	420	653
DL1000	510	440	910	400
