EAF UHP Grade Graphite Electrodes Of Dia 600mm With Suitable Nipples and Nominal Length 2100 mm

Online Inquiry

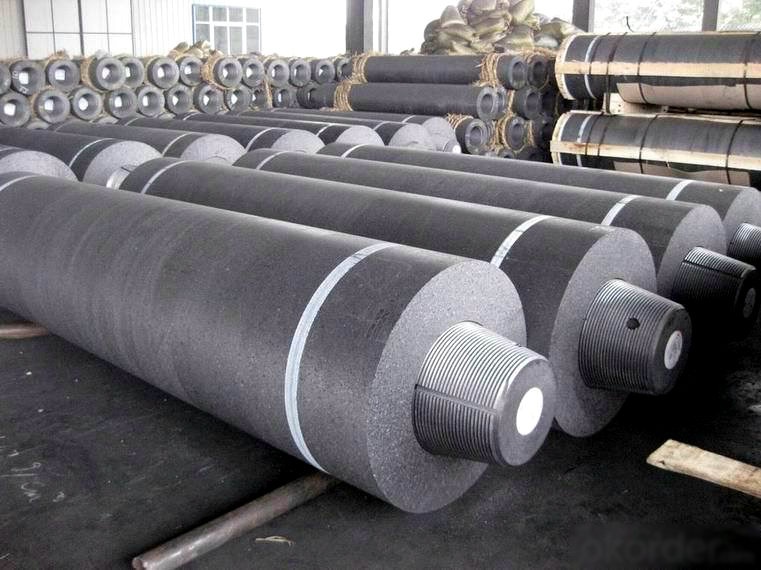

EAF UHP Grade Graphite Electrodes Of Dia 600mm With Suitable Nipples and Nominal Length 2100 mm
Shanchun® Carbon – China’s leading Graphite electrodes distributor. whatsapp +8613184770996 !

Graphite electrode is one of the most important metallurgical products, mainly used as conductive material in electric arc furnace metallurgy production. UHP graphite electrodes are mainly used for steelmaking high-power and ultra-high power electric furnaces.

Graphite electrode Dimension
● Nominal Diameter: 610mm (min 607mm, max 613mm)
● Nominal Length: 2100 mm±10%
● Nipple: 317T4 (Long Type)
● Nipple Length: 457.2 mm
● Typical Weight: Electrodes and Nipple Approx.1220 kg

Graphite Nipple Dimension

Nipple Type: 317T4L

Nipple Diameter: 317.5 mm

Nipple Length: 457.2 mm

Nipple Socket Depth: 234.6 mm

Physical and Chemical Parameters of UHP600mm Graphite Electrode

Index		Unit	YB/T4090 Industry Standard
			UHP 610mm
			Typical Value
LSR≤	Electrode	μΩ.M	5.5
	Nipple		3.8
Flexural Strength ≥	Electrode	Mpa	11.0
	Nipple		20.0
Elastic Modulus ≤	Electrode	Gpa	14.0
	Nipple		22.0
Bulk Density ≥	Electrode	g/cm³	1.66
	Nipple		1.75
CTE ≤	Electrode	10-6/ ℃	1.1
	Nipple		0.9
Ash ≤		%	0.3
Current Carrying Capacity		A	AC 70000-90000 DC 750000-100000

Advantage

● Withstand large currents, high discharge rate.
● Good dimension stability, not easy to deform.
● Resistant to cracking & spalling.
● High resistance to oxidation and thermal shock.
● High mechanical strength, low electrical resistance.
● High machining accuracy, good surface finishing.
